Earthing Electrode

• Application
• industrial, commercial and electrical substation

• Cable Type
• Heavy duty, Corrosion-resistant

• Color
• Reddish Brown

• Conductor
• High duty

• Copper Thickness
• 0.25mm Millimeter (mm)

• Diameter
• 50 Millimeter (mm)

• Dimension (L*W*H)
• 2000(L) Millimeter (mm)

• Display Type
• Heavy duty grounding soluyions designed for industrial and commercial

• Features
• High quality

• Frequency
• 50-60 Hertz (HZ)

• Function
• provide a low resistance path to the ground for fault currents

• Life Span
• 15 to 30 year

• Material
• Copper Bonded

• Operating Temperature
• -20 to +60 Celsius (oC)

• Phase
• 25O micron

• Power Rating
• HIGH CONDUTIVITY

• Product Type
• Electrical Earthing

• Purity
• 99.9%

• Rated Current
• 600-1000 Ampere (amp)

• Rated Voltage
• 11000 Volt (V)

• Shape
• Round

• Strength
• Hard

• Surface Treating
• Polished

• Tensile Strength
• 300-400 Megapascals (MPa )

• Tolerance
• +2 Millimeter (mm)

• Usage & Applications
• Earthing

• Warranty
• 10 year

• Weight
• 12 Kilograms (kg)

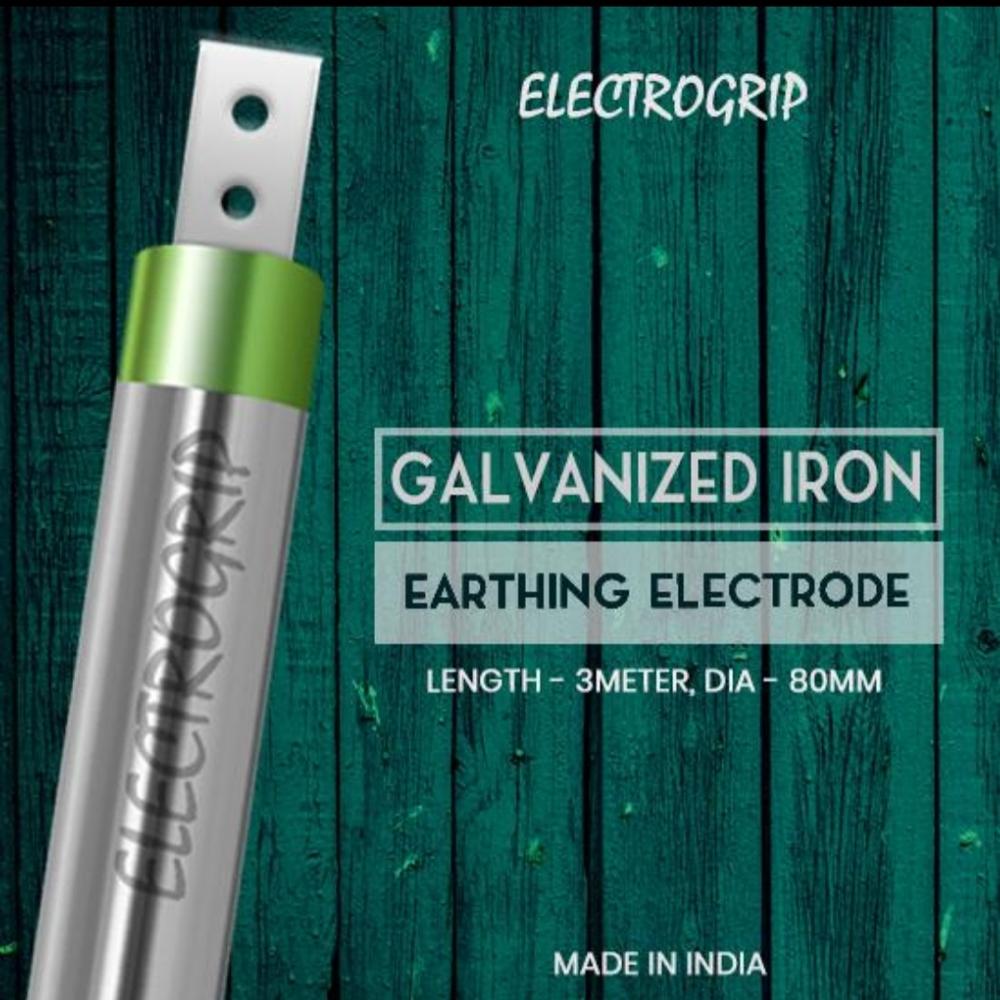

• Application
• protecting industrial plant, substation,

• Cable Type
• (50mm - 80mm Diameter)

• Color
• Silver

• Conductor
• conductive chemical backfill

• Copper Thickness
• 3.0 to 4.5 Millimeter (mm)

• Diameter
• 32 to 110 Millimeter (mm)

• Dimension (L*W*H)
• 2 to 3 Meter (m)

• Display Type
• round, pipe-in-pipe or pipe -in-rod design

• Features
• Corrosion Resistance

• Frequency
• 50 to 60 Hertz (HZ)

• Function
• provides a low-resistance path to safely dissipate fault currents

• Material
• Glavanised iron

• Operating Temperature
• -10degree to +60degree Celsius (oC)

• Phase
• high performance, (GI) pipes filled with conductive compound

• Power Rating
• 2kw to over 5kw

• Product Type
• low maintenance grounding system designed

• Purity
• between 95% and 100%

• Rated Current
• 1 Ohm (ohm)

• Rated Voltage
• 220 to 440 Volt (V)

• Shape
• Round

• Strength
• Hard

• Surface Treating
• Galvanized

• Tensile Strength
• 400--600 Newtons per Millimetre Squared (N/mm2)

• Tolerance
• +2 Millimeter (mm)

• Usage & Applications
• Ground Earthing

• Warranty
• 25 YEAR

• Weight
• 12 Kilograms (kg)

• Cable Type
• typically 100-250 micron coating

• Color
• reddish brown

• Conductor
• provide low-resistance grounding for industrial, transformer

• Copper Thickness
• 3 Feet (ft)

• Diameter
• 50 Millimeter (mm)

• Dimension (L*W*H)
• 1.6 to 3 Millimeter (mm)

• Display Type
• 99.9% pure or copper-bonded

• Features
• High quality

• Frequency
• 50-60 Hertz (HZ)

• Life Span
• 15 to 30 year

• Material
• Pure Copper

• Operating Temperature
• -20 to +80 Celsius (oC)

• Phase
• heavy-duty, 99% pure or copper-bonded

• Power Rating
• used for system requiring low resistance

• Purity
• 99.99%

• Rated Current
• 5kW to 415 Volt (v)

• Rated Voltage
• 11 or 33 Volt (V)

• Shape
• Round

• Strength
• Hard

• Surface Treating
• Galvanized

• Tensile Strength
• 200 to 520 Megapascals (MPa )

• Usage & Applications
• Earthing

• Warranty
• 25 year

• Weight
• 12 Kilograms (kg)
